Verilog HDL using Data Flow

-

Verilog codes using Data Flow



Create 4x1 Mux using Data Flow

Module

module Four_by_One(
    output out,
    input i0,
    input i1,
    input i2,
    input i3,
    input s0,
    input s1
    );

 assign out = (s1)?(s0?i3:i2):(s0?i1:i0);
endmodule

Test Bench

module Test_Four_by_One;

reg I0,I1,I2,I3;
reg S1,S0;
wire OUT;
Four_by_One mymux(OUT,I0,I1,I2,I3,S1,S0);
initial
begin
I0=1;I1=0;I2=0;I3=1;
#10
S1=0;S0=0;
#10
S1=0;S0=1;
#10
S1=1;S0=0;
#10
S1=1;S0=1;
end
endmodule

Create 16x1 using Data Flow using 4x1

Module

module Sixteen_by_One(
    output out,
    input i0,
    input i1,
    input i2,
    input i3,
    input i4,
    input i5,
    input i6,
    input i7,
    input i8,
    input i9,
    input i10,
    input i11,
    input i12,
    input i13,
    input i14,
    input i15,
    input s0,
    input s1
    );
    wire out1,out2,out3,ou4;
    assign out1=(s1)?(s0?i3:i2):(s0?i1:i0);
    assign out2=(s1)?(s0?i7:i6):(s0?i5:i4);
    assign out3=(s1)?(s0?i11:i10):(s0?i9:i8);
    assign out4=(s1)?(s0?i5:i14):(s0?i13:i12);

    assign out=(s1)?(s0?out4:out3):(s0?out2:out1);
endmodule

Test Bench

module Test_Sixteen_by_One;

reg I0,I1,I2,I3,I4,I5,I6,I7,I8,I9,I10,I11,I12,I13,I14,I15;
reg S1,S0;
wire OUT;

Sixteen_by_One mymux(OUT,I0,I1,I2,I3,I4,I5,I6,I7,I8,I9,I10,I11,I12,I13,I14,I15,S1,S0);
initial
begin
I0=1;I1=0;I2=1;I3=0;
I4=0;I5=1;I6=0;I7=1;
I8=1;I9=0;I10=0;I11=1;
I12=0;I13=1;I14=1;I15=0;
#10
S1=0;S0=0;
#10
S1=0;S0=1;
#10
S1=1;S0=0;
#10
S1=1;S0=1;
end
endmodule

Flip Flop using Data Flow

Module

module FlipFlop(
    output q,
    output qbar,
    input clear,
    input clk,
    input d
    );

wire cbar, sbar, s, r, rbar, clk1;
//NOT OF INPUTS
assign cbar= ~clear;
assign clk1= ~clk;
// GATES
assign sbar=~(rbar & s);
assign s= ~(sbar & cbar & clk1);
assign r=~(s & clk1 & rbar);
assign rbar=~(r & cbar & d);
//OUTPUTS
assign q=~(s & qbar);
assign qbar=~(q & cbar & r);
endmodule

Test Bench

module Test_FlipFlop();
wire q,qbar;
reg clear,clk,d;

FlipFlop myflip(q,qbar,clear,clk,d);
initial
begin
clk=1;
clear=1;d=0;
#20
clear=0;d=1;
#20
clear=1;d=1;
#20
clear=0;d=0;
end
always
#20 clk=~clk;
endmodule

Comments

Post a Comment

Popular posts from this blog

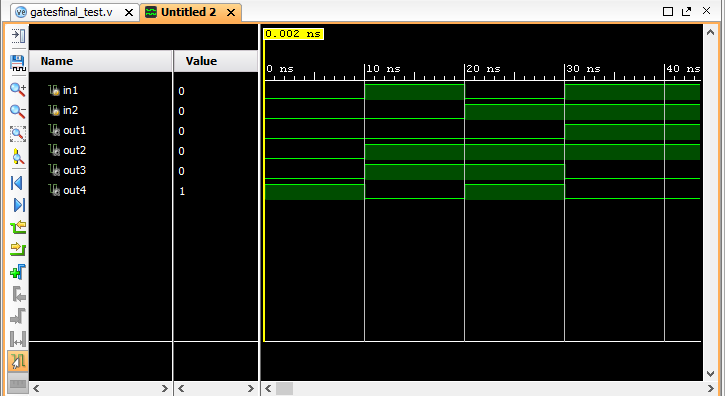

Verilog HDL Codes (Vivado)

-
